Smart#1 HMI Design

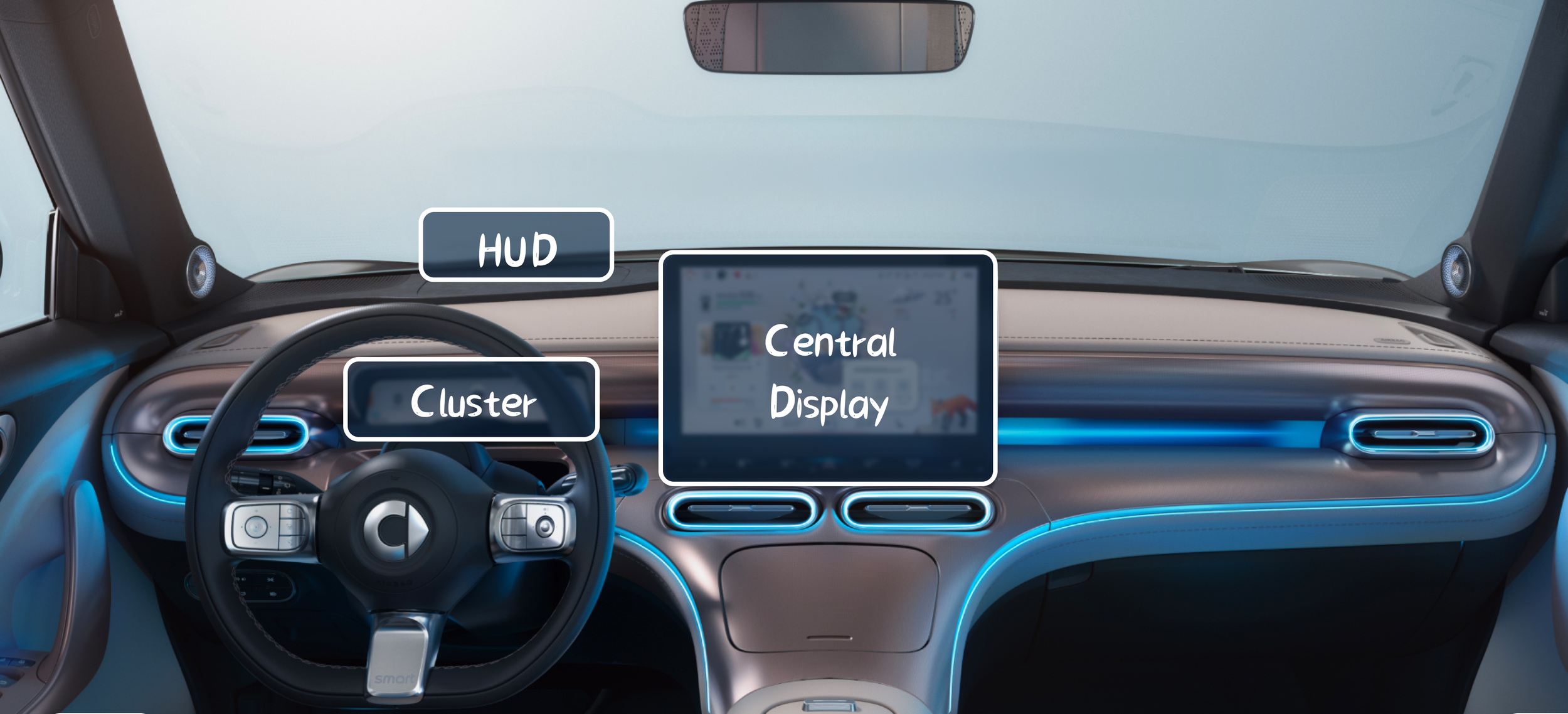

Deliver UX designs in the HMI development of Smart#1 including the cluster, head up display and the central screen display
Smart #1
Smart#1 is the first fully electrical vehicle of Smart. While I was working at ThunderSoft, I took part in the UX design work of Smart and was mainly responsible for the cluser &HUD design work.
Cluster&HUD UX Design Document Overview
Framework
Drive Information
Tell-tale
Notification
Navigation
Entertainment
Driver Support
1 Framework
Define main display area
Define information display priority in different scenarios for different vehicle configurations

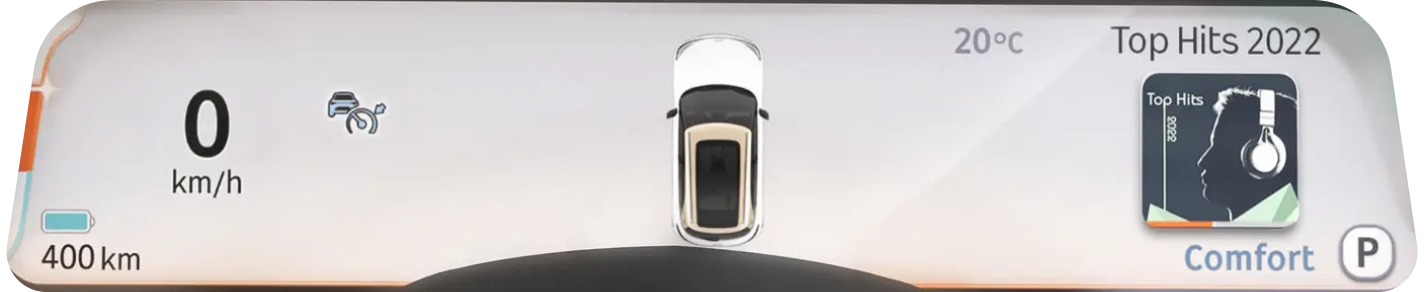

2 Drive Information
Define the cluster information in detailed
Navigation
Media info
Trip information
Phone
Notification
Gear
Drive mode
Temperature
Vehicle speed
Range & Power
Define how to use the steering wheel control to interact with the vehicle and the cluster display
Voice control
Wechat
Trip info
Media control
ADAS control
APA (Driving assist) control
3 Telltale
Define telltale location according to:
Regulations
Function
Layout and visual balance
4 Notification
Define different display logic & interaction according to notification type and importance
5 Navigation
Define navigation display logic
6 Entertainment
Define display logic and interaction rules of media content and phone call
7 ADAS Features
Define ADAS features visualization and interaction rules according to:
Feature and use cases
Target display type (cluster/HUD)
Vehicle configuration (Smart #1 has multiple configurations that vary in ADAS features)
Related ADAS features include:
Smart pilot (Lv2+ autonomous driving feature)
NOA (Navigate on Autopilot)
ACC (Adaptive cruise control)
FCW (Front collision warning)
RCW (Rear collision warning)
LKA (Lane keeping aid)
LDW (Lane departure warning)
FCTA (Front cross traffic alert)
RCTA (Rear cross traffic alert)
LCA (Lane changing aid)
EMA (Emergency maneuver aid)
TLA (Traffic light assist)
TSI (Traffic sign assist)
DOW (Door opening warning)
…
